Achieving Tight Tolerances in CNC Machining: A Deep Dive
Understanding and achieving tight tolerances is crucial for many advanced manufacturing applications.
Understanding Tight Tolerances in CNC Machining
In CNC machining, achieving tight tolerances is paramount for producing high-quality, functional parts. Tolerance refers to the permissible variation in a dimension or property of a manufactured part. When we talk about a tolerance of ±0.020 mm (or ±20 microns), it means that the actual dimension of the part can deviate from the specified dimension by no more than 0.020 mm in either direction. This level of precision requires meticulous attention to detail throughout the entire manufacturing process, from design and material selection to machining parameters and quality control.
To put this into perspective, 0.020 mm is about half the thickness of a human hair. Achieving such accuracy demands advanced CNC equipment, skilled machinists, and a controlled environment. Factors like temperature fluctuations, machine vibration, and tool wear can all impact the final dimensions of the part. Therefore, rigorous quality control measures are essential to ensure that every part meets the specified tolerance requirements.
The ability to consistently produce parts within tight tolerances is a hallmark of high-quality CNC machining and is often a key differentiator between average and exceptional manufacturing services.

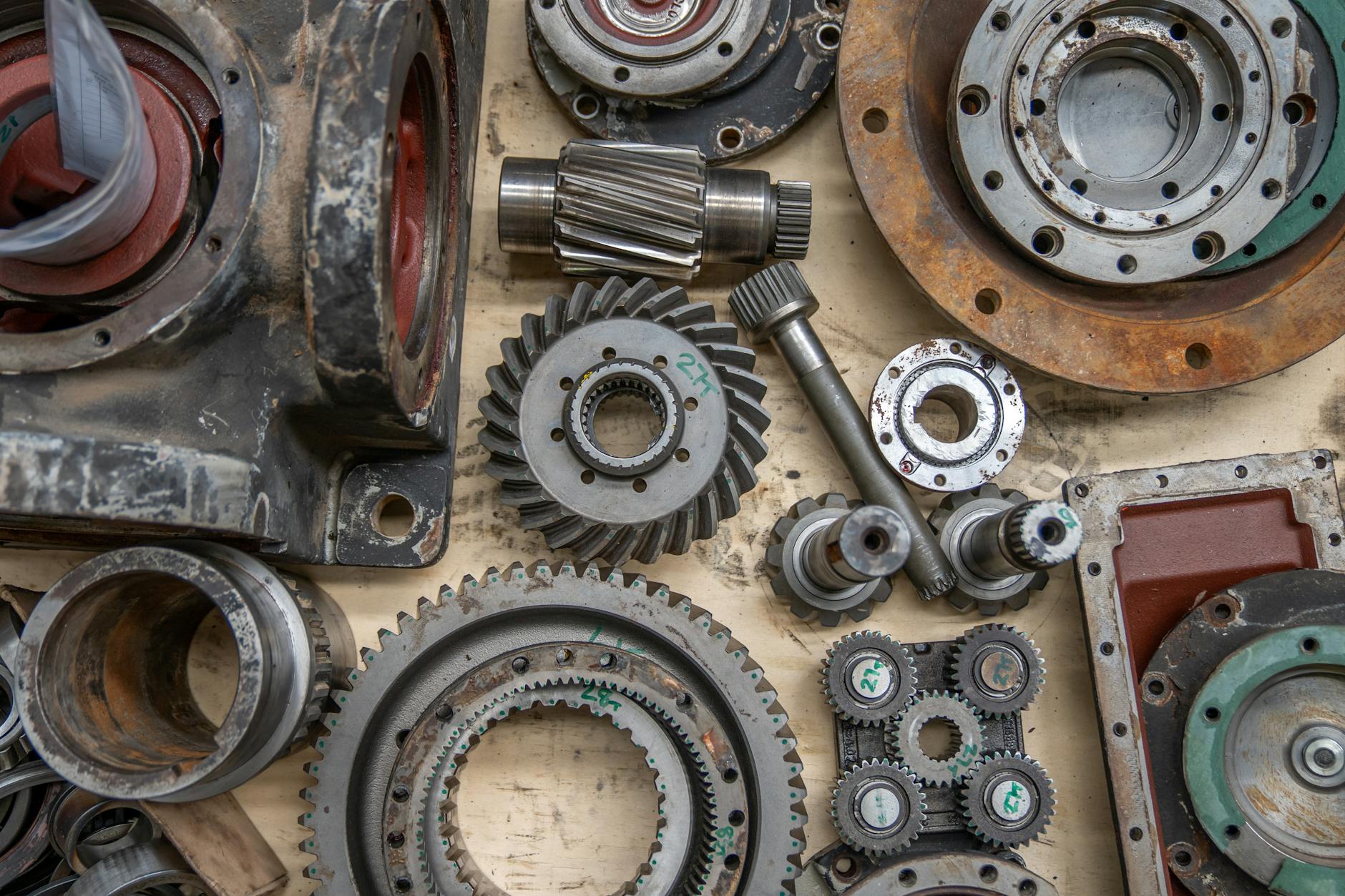

The Importance of ±0.020 mm Precision
Why is ±0.020 mm precision so important? The answer lies in the functionality and reliability of the final product. In many applications, parts must fit together perfectly and operate seamlessly. Even slight deviations from the specified dimensions can lead to performance issues, reduced lifespan, or even complete failure. For example, in the aerospace industry, tight tolerances are critical for ensuring the safety and efficiency of aircraft engines and structural components. Similarly, in the medical device industry, precise dimensions are essential for the proper functioning of implants and surgical instruments.
Furthermore, tight tolerances can improve the overall quality and aesthetics of a product. Parts that are manufactured to precise specifications tend to look and feel more refined. This can be particularly important in industries where aesthetics play a significant role, such as consumer electronics and luxury goods. In short, achieving ±0.020 mm precision is not just about meeting technical requirements; it’s about delivering superior products that meet the highest standards of quality and performance.
The cost of failing to meet these tolerances can be significant, including scrapped parts, rework, delays, and ultimately, damage to reputation. Therefore, investing in the right equipment, training, and quality control processes is crucial for any company that wants to compete in markets that demand high precision.

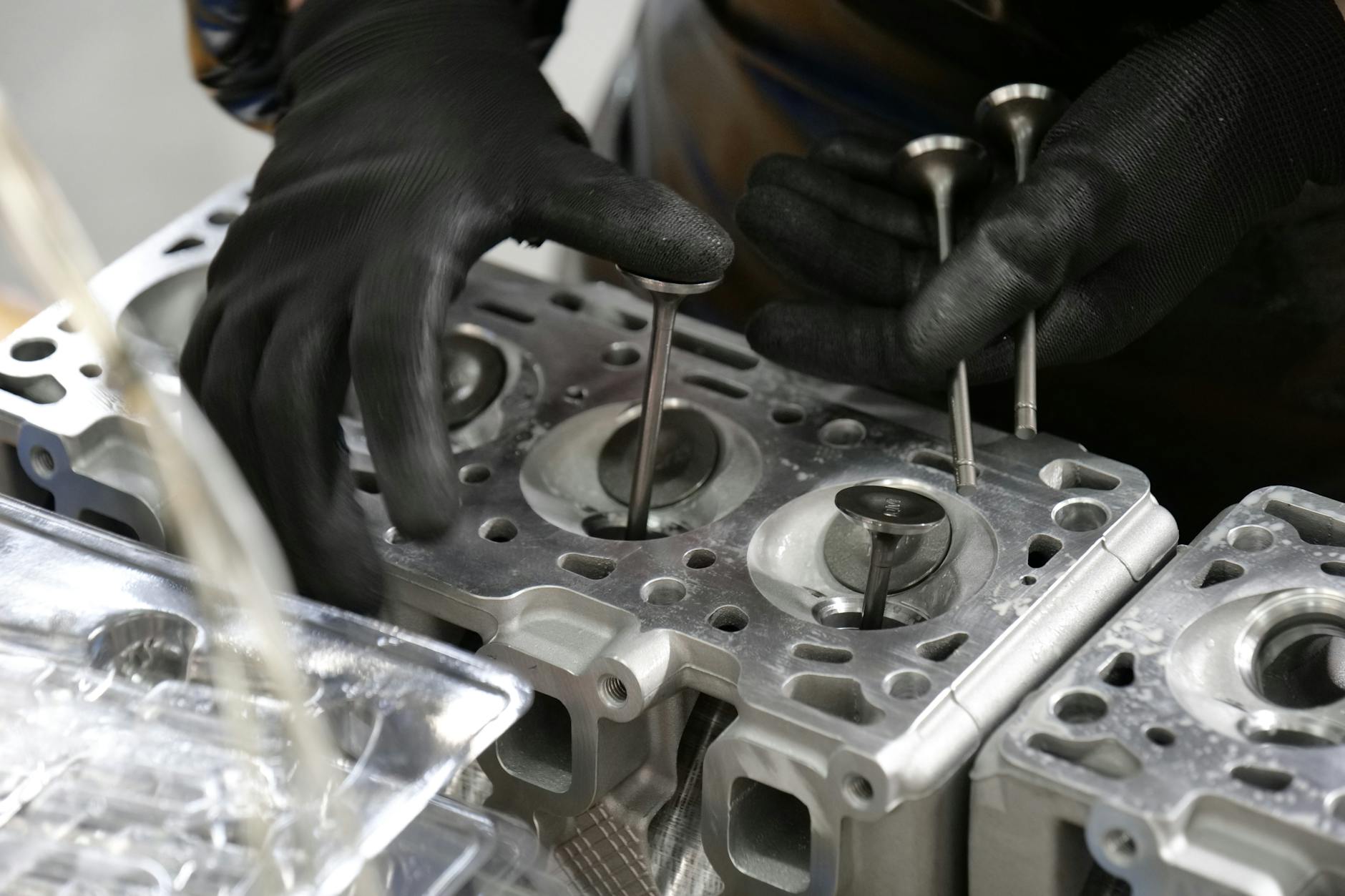

Industries That Demand Tight Tolerances
Several industries rely heavily on CNC machining with tight tolerances. The aerospace industry is a prime example. Aircraft components, such as turbine blades, landing gear parts, and hydraulic systems, require extreme precision to ensure safety and performance under demanding conditions. Even slight deviations can have catastrophic consequences.
The medical device industry also demands tight tolerances for implants, surgical instruments, and diagnostic equipment. These devices must be manufactured to exact specifications to ensure compatibility with the human body and proper functioning during medical procedures. Precision is literally a matter of life and death in many cases.
The electronics industry requires tight tolerances for manufacturing circuit boards, connectors, and other components. Miniaturization and increasing complexity of electronic devices necessitate extremely precise manufacturing processes. Furthermore, the automotive industry relies on CNC machining with tight tolerances for engine components, fuel injection systems, and other critical parts. Precision is essential for ensuring optimal performance, fuel efficiency, and emissions control.
Finally, the defense industry, with its stringent requirements for weapons systems, communication equipment, and surveillance technology, also relies heavily on tight tolerances in CNC machining.
Achieving Tight Tolerances: Key Considerations
Achieving tight tolerances in CNC machining requires a holistic approach that considers every aspect of the manufacturing process. First and foremost, it’s essential to have the right equipment. High-precision CNC machines with advanced control systems and vibration damping capabilities are a must. Regular maintenance and calibration are also crucial for ensuring consistent performance.
Material selection is another important factor. Some materials are easier to machine to tight tolerances than others. Factors like hardness, thermal expansion, and machinability should be carefully considered. The right cutting tools are also essential. High-quality tools with sharp cutting edges and appropriate coatings can significantly improve accuracy and surface finish. Furthermore, machining parameters, such as cutting speed, feed rate, and depth of cut, must be carefully optimized to minimize tool wear and maintain dimensional accuracy. Coolant management is also critical for preventing thermal distortion and ensuring consistent cutting conditions.
Finally, a robust quality control system is essential for verifying that parts meet the specified tolerance requirements. This includes using precision measuring instruments, such as coordinate measuring machines (CMMs) and micrometers, and implementing statistical process control (SPC) techniques to monitor and control the manufacturing process.
The Future of Precision Machining
The demand for tight tolerances in CNC machining is only going to increase in the future. As products become more complex and performance requirements become more stringent, the need for precision manufacturing will continue to grow. Advancements in CNC technology, such as five-axis machining, adaptive control, and machine learning, are enabling manufacturers to achieve even tighter tolerances and produce more complex geometries. These technologies allow for more intricate designs and improved surface finishes, opening up new possibilities for product innovation.
Moreover, the integration of digital technologies, such as CAD/CAM software, simulation tools, and data analytics, is transforming the way CNC machining is performed. These tools enable manufacturers to optimize machining processes, predict and prevent errors, and improve overall efficiency. The increasing use of automation and robotics is also helping to reduce human error and improve consistency in manufacturing processes. As a result, the future of precision machining looks bright, with continued advancements in technology and processes paving the way for even greater levels of accuracy and efficiency.
Companies that invest in these technologies and develop the necessary expertise will be well-positioned to meet the challenges and opportunities of the future.
